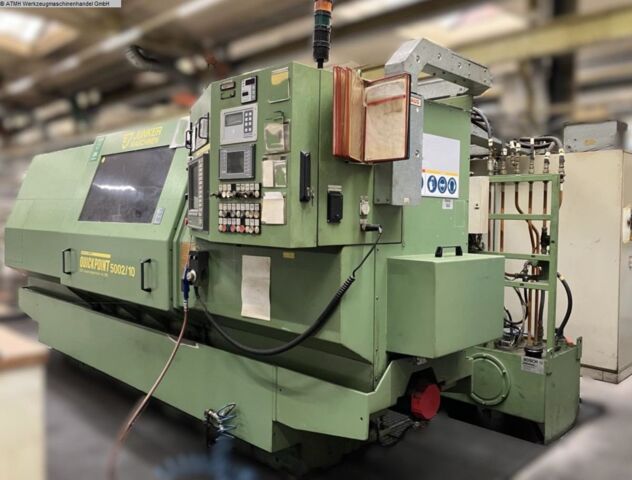

JUNKER Quickpoint 5002/10

Cylindrical Grinding Machine

Order-No.AR6000
MakeJUNKER
Built in2000
Control NameFANUC
OriginGermany
Conditionused
Delivery TermsAccording to the arrangement
QuotationFree on truck from location
Priceupon request
grinding diameter
300 mm
grinding length
1200 mm
workpiece turning speeds
6000 U/min
max. workpiece weight
70 kg
control
FANUC
peripheral speed
140 m/sec
grinding wheel size
CBN 400 x 5 mm
Spindle power
24 kW
weight of the machine ca.
11 t

Quickpoint 5002/10 CNC external cylindrical grinding machine, built in 2000
- Regular maintenance carried out
- Documentation available

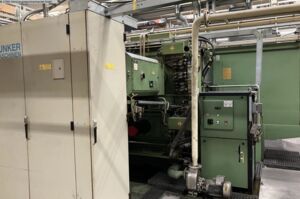

Special accessories:
- Junker novotecnic cooling lubricant system
- 2x LTA II R/H extraction systems
- Hyfra recooler
- 4 grinding wheel blanks
- Oil pan with grating
