GERD WOLFF - 4045mm
GERD WOLFF - 4045mm

GERD WOLFF 4045mm

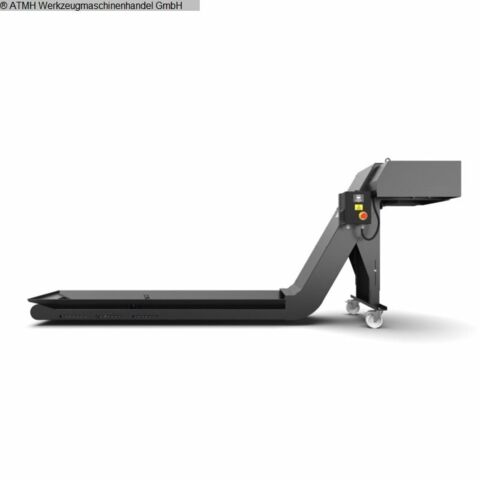

Swarf Conveyor
- BRAND NEW -

Order-No.41005
MakeGERD WOLFF
OriginTurkey
ConditionNEW
Delivery Terms7 Weeks after Order
QuotationFree on truck from location
Priceupon request

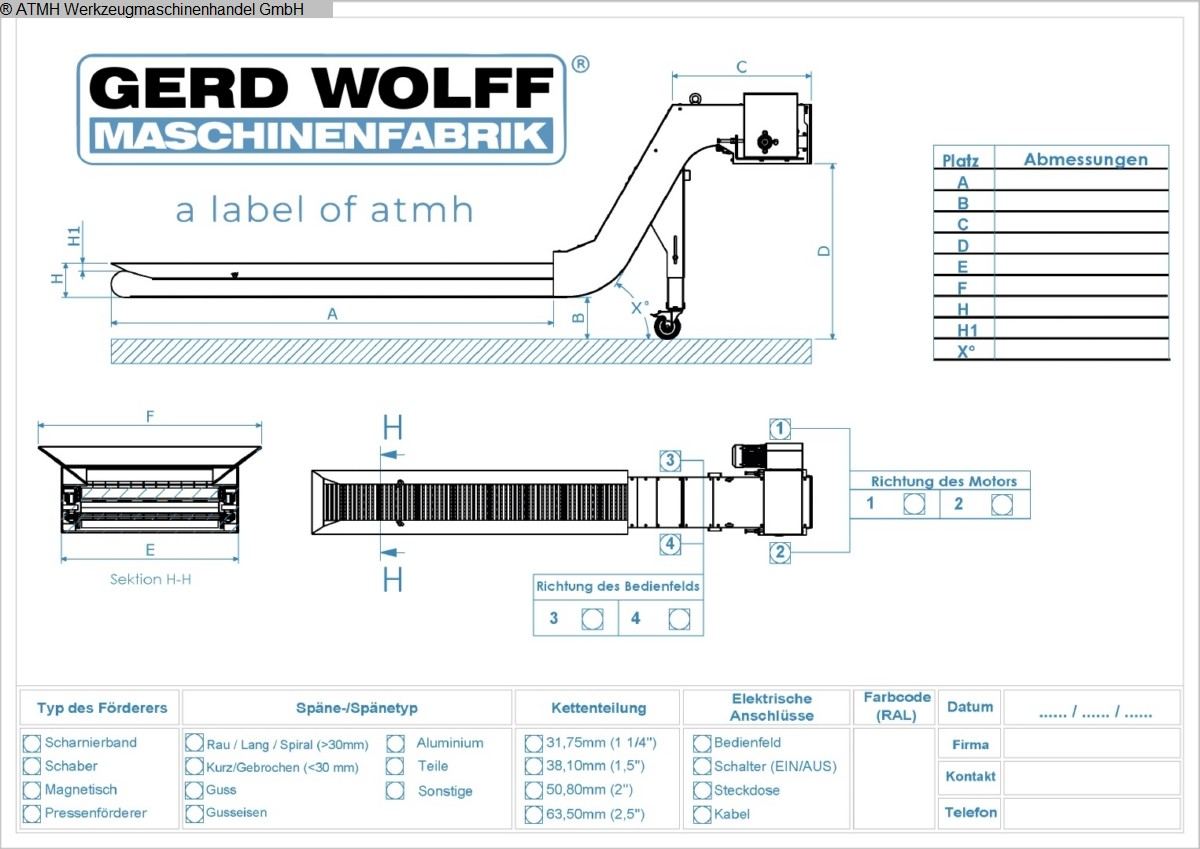

length in total
4045 mm
band width
235 mm
conveying height
1200 mm

Internal stock no: ATMH 9
We manufacture according to your wishes !!!
Band Material: Stainless Steel
Pictures may differ from the original
Slatted Belt Conveyors are used to transport a wide range of
to move long, rough, curled and crumbly chips are dying out
gear steel, working tool steel, aluminum alloy metal as well as others
Materials such as Teflon, Delrin, etc. come from. Slat conveyors are the am
most commonly used types of chip conveyors.
These are the systems developed for the purpose of conveying the chips
Were and come from the production process and cutting oil/coolant from
separate the shavings. Folding belt conveyors can be made with or without a tank
Used to return cutting oil/coolant to the system.
In our standard production we use four types of chain spacing:
31.75, 38.10, 50.80, 63.50. The chain pitch will increase depending on the
amount of
Conveyor spans and conveyor width and length set. engine and
Gears are selected according to the amount of chips to be conveyed per hour
selected. The recycling of coolants WILL be used in this selection
taken into account.
The control of the conveyor can be done via a panel, and the control
can also be done over the CNC control unit of the machine tool, however
a socket connection is made.
These conveyors can be customized according to the required purposes and
dimensions
getting produced. As a general structure and belt system are pivotable
Belt conveyors long as long as maintenance is carried out regularly.
