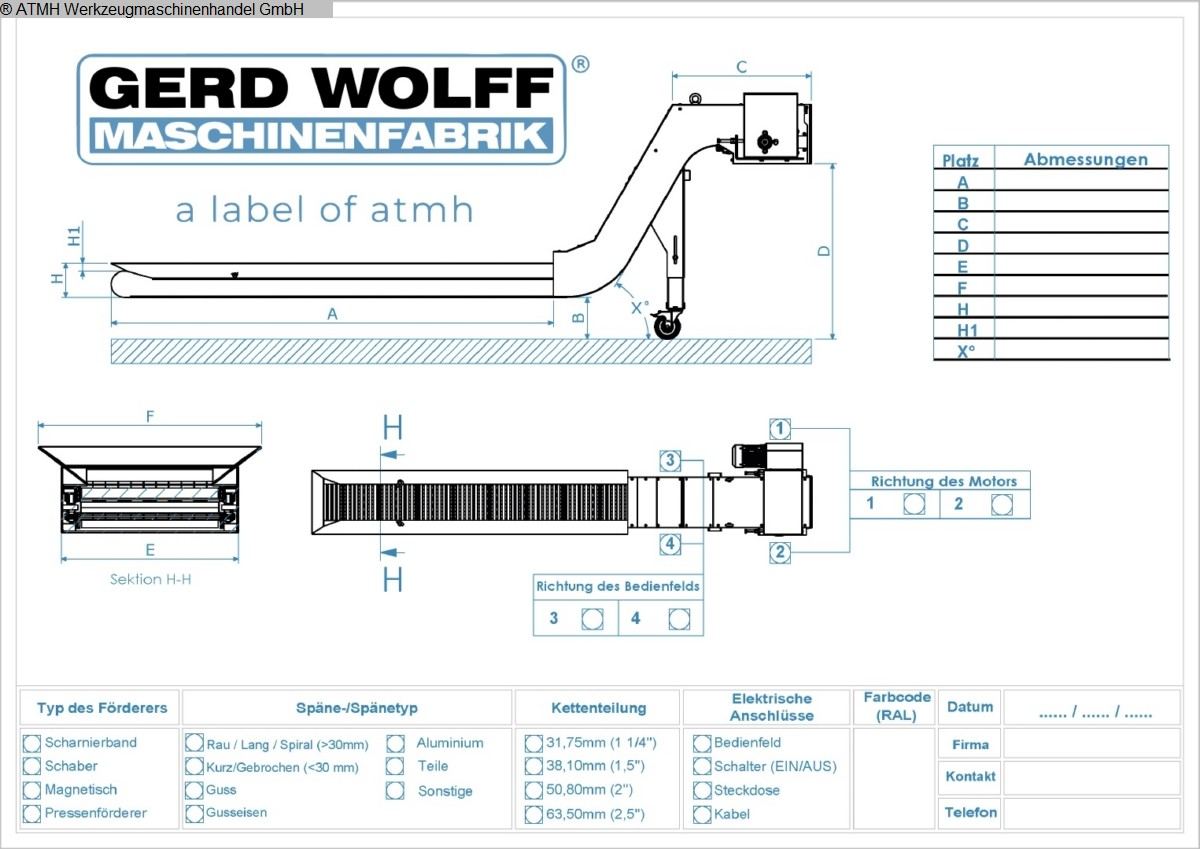

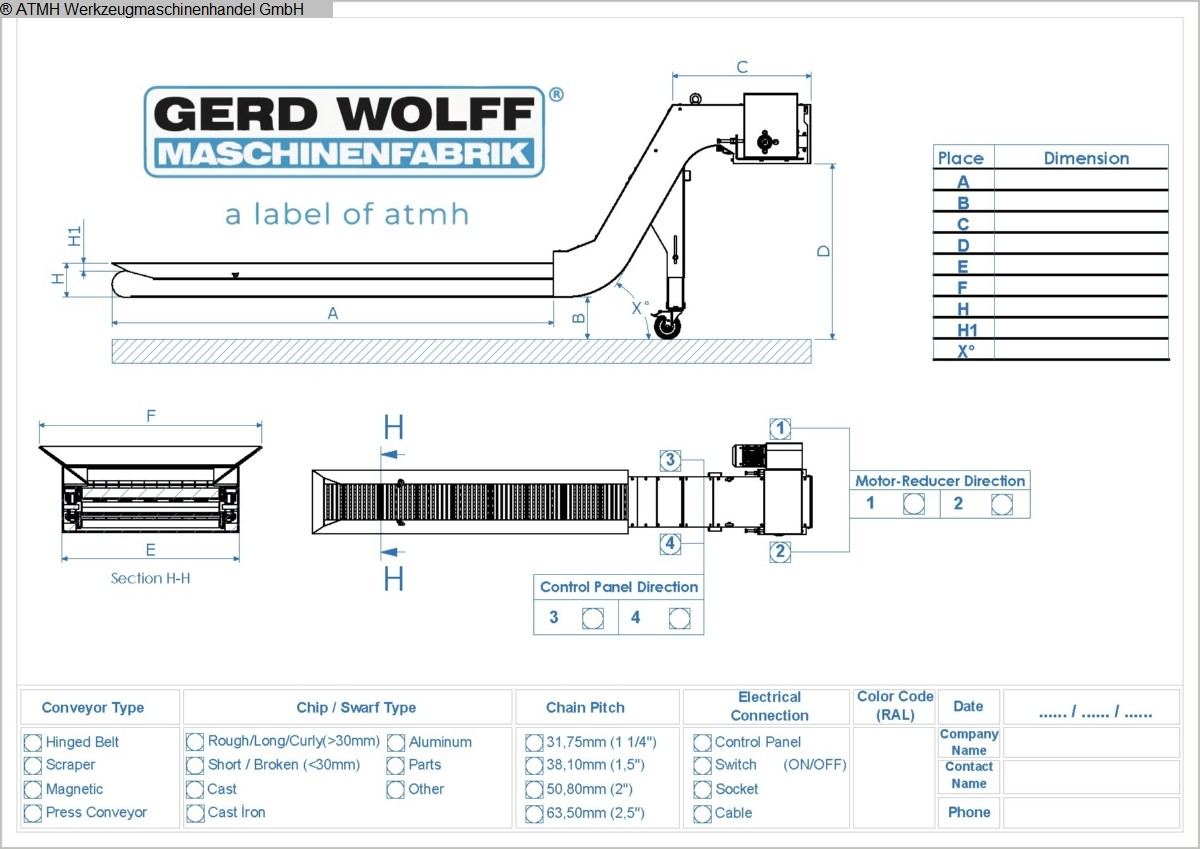

Please complete the attached form and return it to us by email for quotation preparation.

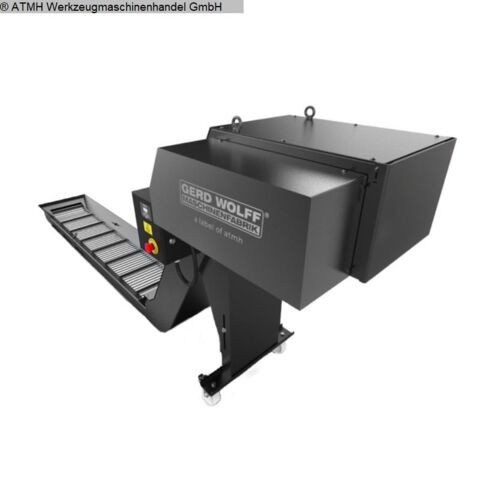

Hinged Belt Conveyors – Overview & Features

General
- Hinged belt conveyors can be manufactured according to purpose and dimensions.
- The design and belt system are robust and durable, provided regular maintenance is carried out.
- Most commonly used type of chip conveyor.

Applications
Transport of:
- Long, coarse, corrugated, and crumbly chips
- Materials such as transmission steel, tool steel, aluminum alloys, Teflon, Delrin, etc.
- Designed for conveying chips from the production process.
- Separation of cutting oil/coolant from the chips.

Versions
- Available with or without a tank for returning cutting oil/coolant to the system.
- Four standard chain pitches: 31.75 mm, 38.10 mm, 50.80 mm, 63.50 mm.
- Chain pitch selected according to the amount of chips to be conveyed.
- Conveyor width, length, motor, and gearbox are matched to the hourly conveying capacity.
- Coolant recycling is taken into account during the design.

Control
- Operation via control panel or CNC control of the machine tool.
- Control via plug-in connection possible.

Note: Images are for reference only and are not to scale.
