GERD WOLFF KLS 650 x 850

Bandsaw - Horizontal
- BRAND NEW -

Order-No.16106
MakeGERD WOLFF
Built in2023
OriginTurkey
Locationsupplier
Delivery Termsas per agreement
Quotationex stock, free on truck
Priceupon request
Send inquiry »
cutting diameter
650 mm
saw band length
8200 x 54 mm
cutting width
1,6 mm
Capacity 90° - rectangle
650 x 850 mm
Capacity 90° - square
650 x 650 mm
total power requirement
5,5 kW / 2775 Nm
weight of the machine ca.
6400 kg
dimensions of the machine ca.
2700 x 1500 x 4100 mm

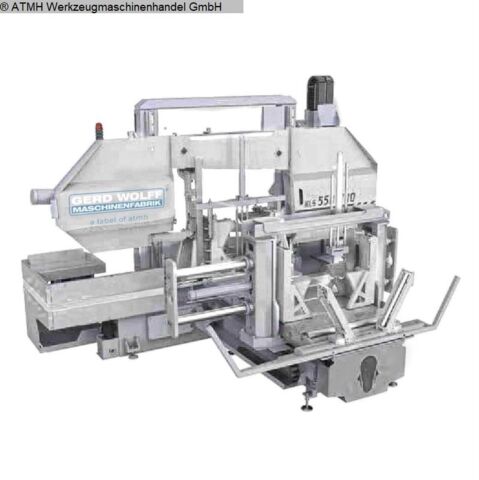

The KLS 650 x 850 is a semi-automatic and column guided
horizontal bandsaw.

Standard specifications

- Swarf Brush
- Hydraulic Blade Guide
- Hydraulic Vice
- Hydraulic Blade Tension
- Blade Breakage Switch
- Stop System
- Automatic Ball Screw Lubrication
- Led Lighting
- Swarf Conveyor
- Swarf Carrying
- 1400 mm Feeding Drive
- Double Roller Table
- Material End Detector
- Program Saving System
- USB Connection Output
- PLC Control & Touch Screen
- Inverter
Optional specifications
- Laser Line
- Lubrication Mist
- V Shape Vice
- Extra Double Roller Table
- Upper Clamp System
- Curve Cutting Detecting Sensor

The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
