GERD WOLFF KSY 550 X 700
Bandsaw - Horizontal
- BRAND NEW -
| Order-No. | 16076 |
| Make | GERD WOLFF |
| Built in | 2023 |
| Control Name | Halbautomatisch |
| Origin | Turkey |
| Condition | NEW |
| Location | Ennepetal |
| Delivery Terms | available immediately |
| Quotation | ex stock, free on truck |
| Price | upon request |
| cutting diameter |
|---|
| 550 mm |
| saw band length |
|---|
| 6850 x 41 mm |
| cutting width |
|---|
| 1,3 mm |
| Control |
|---|
| Halbautomatisch |
| Cutting area - square |
|---|
| 550 x 550 mm |
| Cutting area - flat |
|---|
| 550 x 700 mm |
| total power requirement |
|---|
| 4 kW / 1580 Nm kW |
| weight of the machine ca. |
|---|
| 3775 kg |
| dimensions of the machine ca. |
|---|
| 1850 x 1500 x 3450 m |

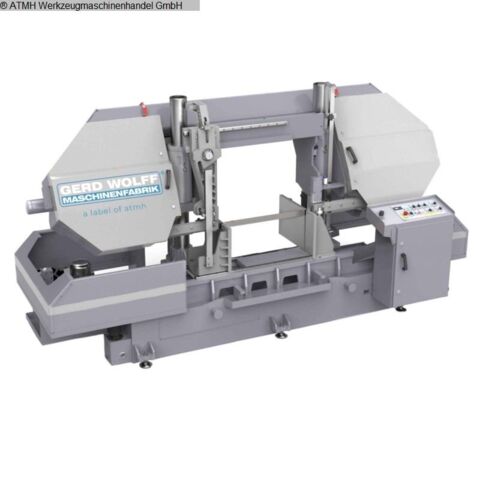

TThe KSY 550 x 700 is a semi-automatic and column-guided horizontal bandsaw.
In addition, the machine has a driven roller table which is 2 meters long on
both the front and rear sides.
Optional Specifications
- Motorized System For Roller Table
- Laser Line
- Extra Double Roller Table
- PLC-Screen
- Anti-Vibration System
The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
