Description of features

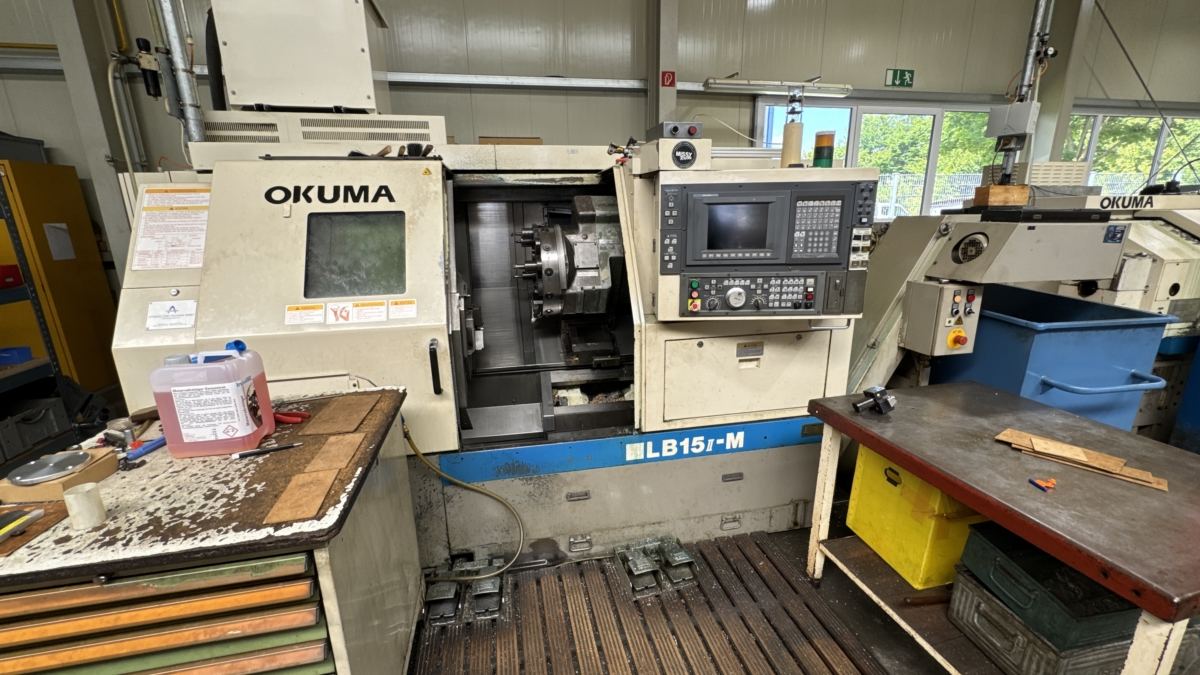

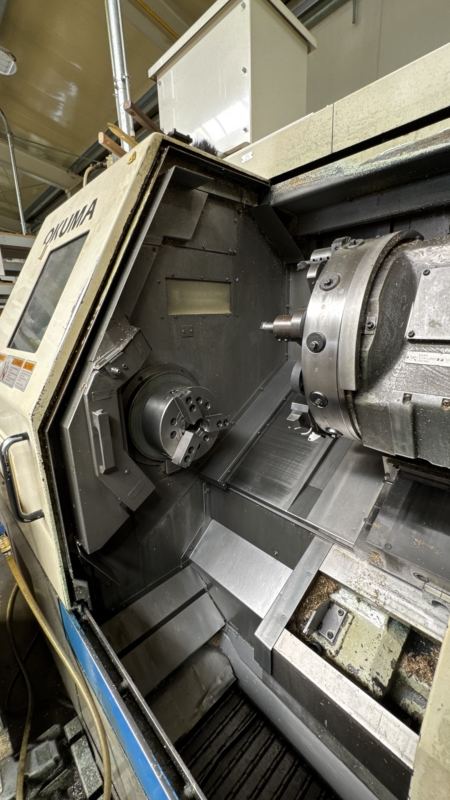

Machine type CNC lathe with milling unit (C-axis + driven
tools)
Machining axes X, Z and C-axis (C for rotating workpiece)

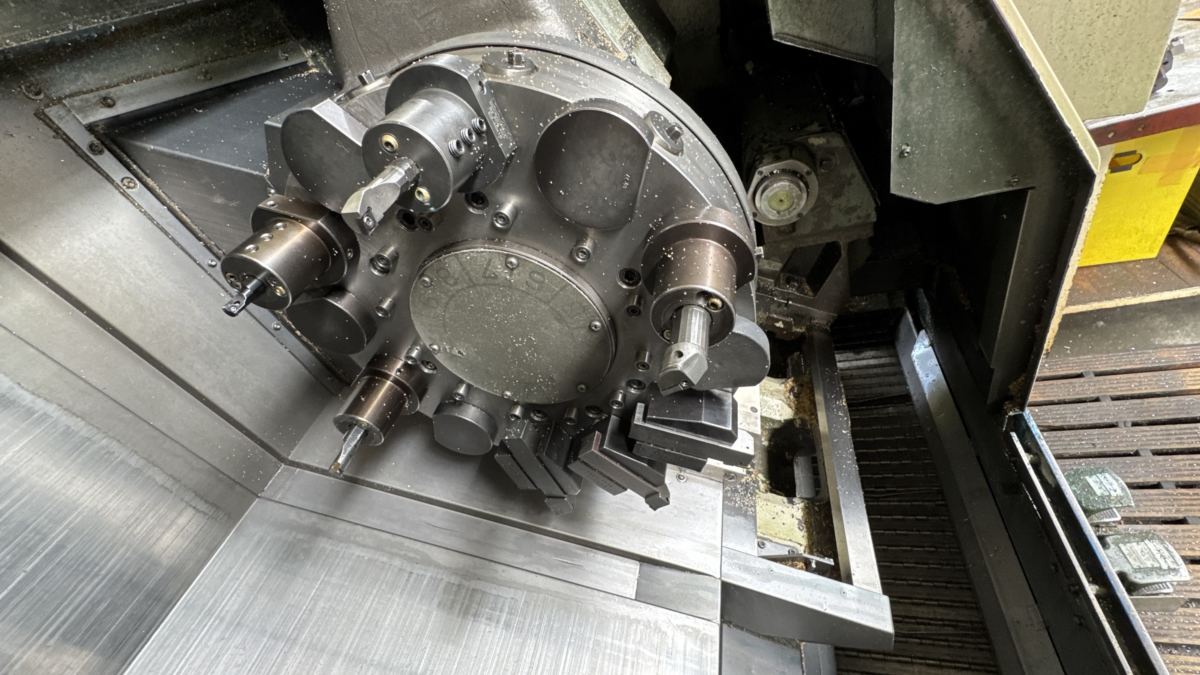

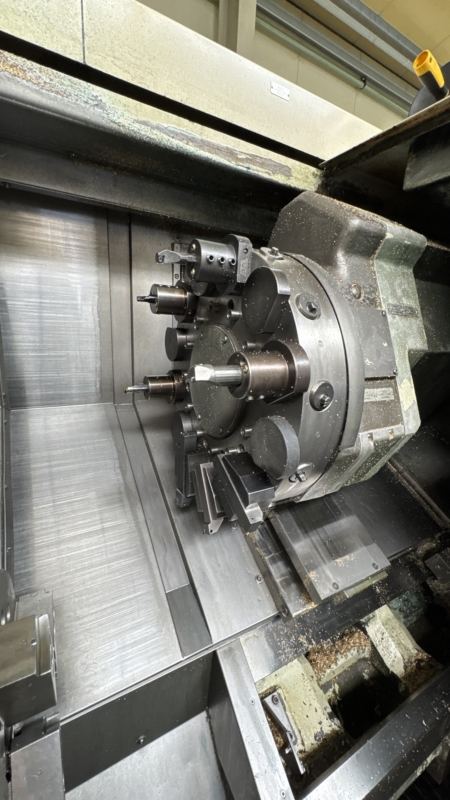

Tool turret 8-12 stations, with driven tools
Turning diameter above the bed: 530mm
Turning diameter above the slide: 530mm
Turning diameter above the cross slide: 340mm
Centre distance: 500mm
Spindle speed approx. 50 - 3500 rpm
Driven tools For drilling, milling, thread cutting on the workpiece
circumferential surface
C-axis Enables positioning in angular degrees (e.g. milling on
circumference)

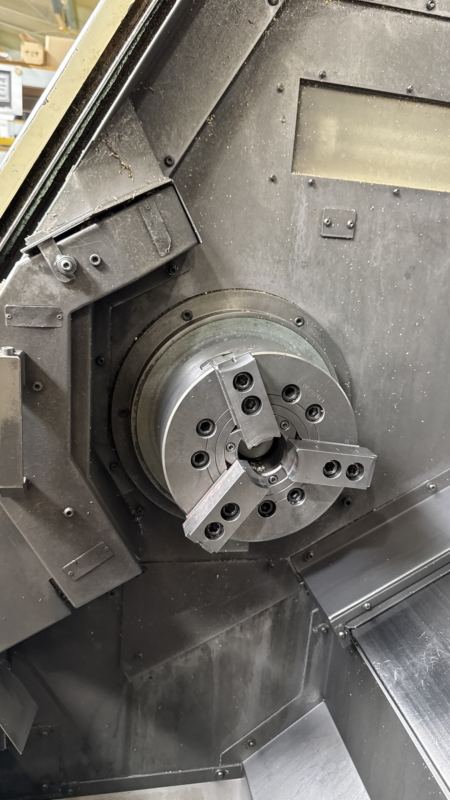

Spindle bore approx. 50 mm
Machine weight: approx. 5080kg
All data without guarantee.
This information is for guidance only. For further information, please contact
.
