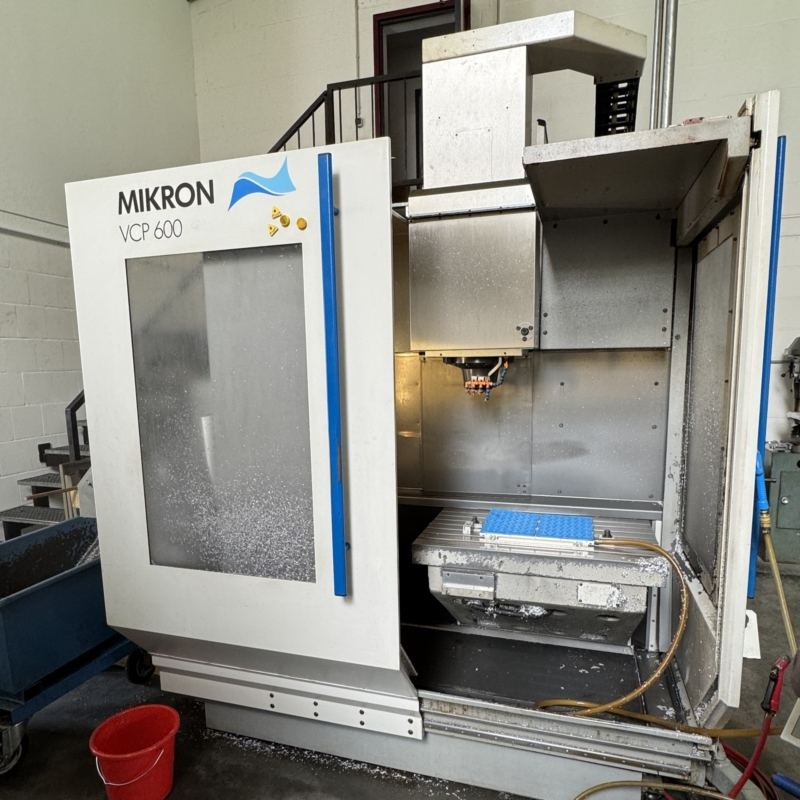

MIKRON VCP 600 – CNC Vertical Machining Center (Year of Manufacture: 2001)
The MIKRON VCP 600 is a precise 3-axis CNC vertical machining center, ideally
suited for high-accuracy machining of complex workpieces. With its robust
construction, high-performance spindle, and reliable Heidenhain control system,
it meets the highest standards in both single-part and series production.
All specifications are provided without guarantee. Exact technical details will
be provided at the time of purchase.

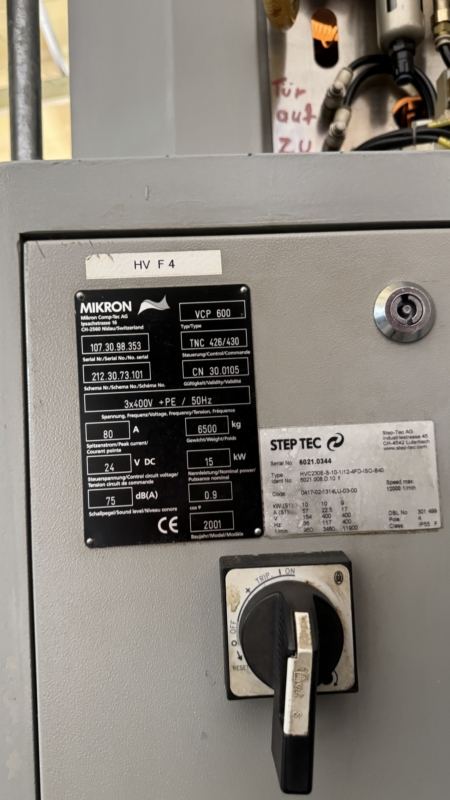

Control system: TNC 4267430
Serial number: 107.30.98.353
Travel Paths
X-axis: 600 mm
Y-axis: 450 mm
Z-axis: 450 mm
Table
Table size: 850 x 530 mm
Maximum table load: 400 kg
Number of T-slots: 6
T-slot spacing: 63 mm
T-slot width: 14H12 mm
Spindle
Spindle speed: 100 – 20,000 rpm
Spindle power: 12 / 16 kW
Tool holder: HSK-A63

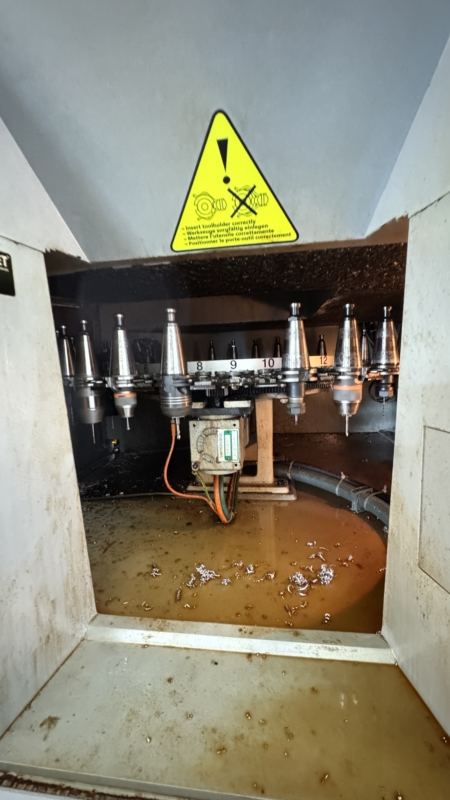

Tool Changer
Number of tool positions: 30
Max. tool diameter: 90 mm
Max. tool diameter with adjacent slots empty: 110 mm
Max. tool length: 250 mm
Max. tool weight: 6 kg
Chip-to-chip time: approx. 7 seconds
Feed and Rapid Traverse
Feed rate: 0 – 22,000 mm/min
Rapid traverse: 22 m/min
Feed force (X/Y/Z): 5,000 N
Dimensions and Weight
Machine weight: approx. 6,500 kg
Installation dimensions (L x W x H): approx. 3,900 x 3,500 x 2,700 mm
