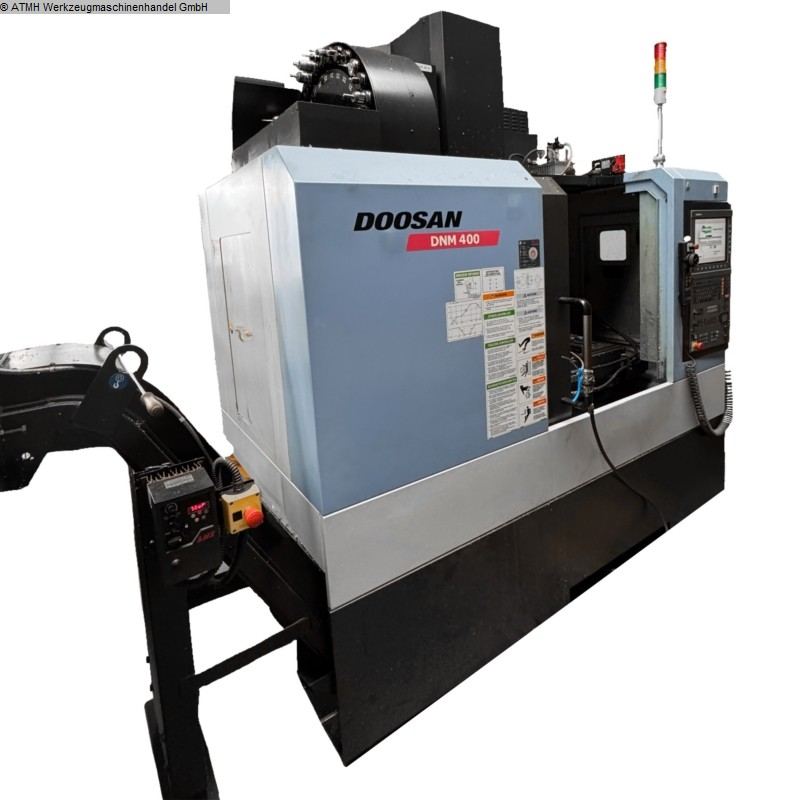

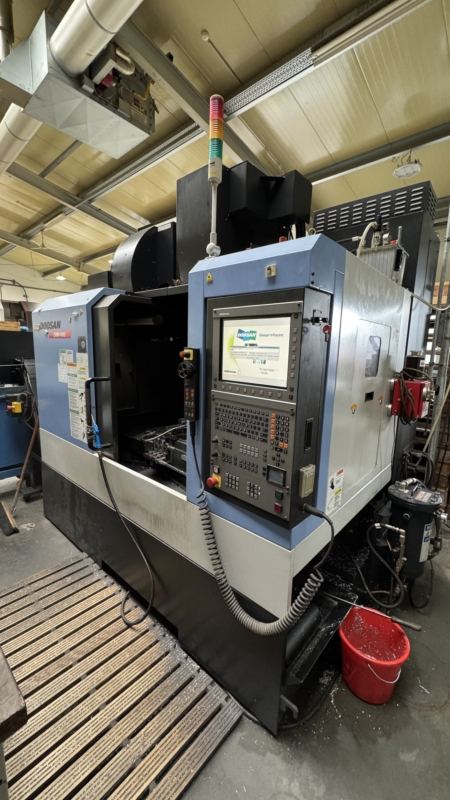

The DOOSAN DNM 400 is a vertical CNC machining center designed for precise
milling operations in metalworking. It is particularly
suitable for small to medium-sized workpieces and offers a solid
combination of performance, accuracy and reliability.
All technical documents for the machine are available and included.
Accessories included.
Travel ranges
X-axis: 742 mm
Y-axis: 435 mm
Z-axis: 510 mm
Rapid traverse
X-axis: 36 m/min
Y-axis: 36 m/min
Z-axis: 30 m/min
Max. cutting feedrate: 1~15,000 mm/min
Ball screw (Diameter × Lead)
X-axis: 40 × P12 mm
Y-axis: 40 × P12 mm
Z-axis: 40 × P10 mm
Accuracy
Positioning accuracy: ±0.005 mm over the full stroke
Repeatability: ±0.002 mm

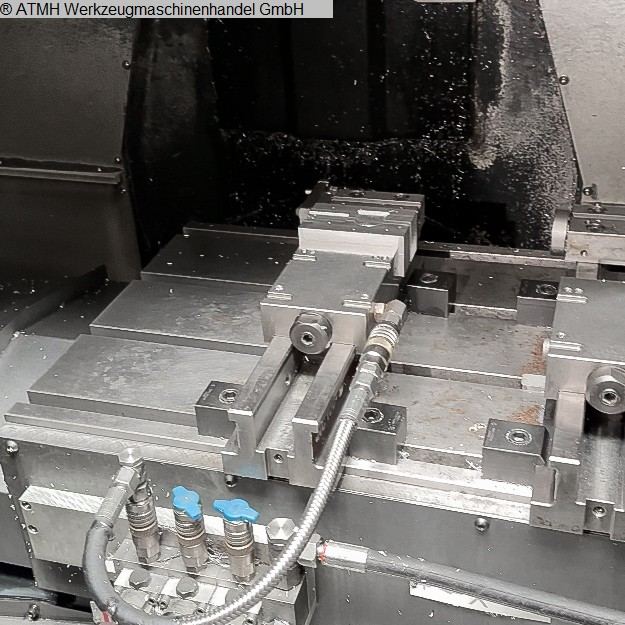

Table size: 920 × 435 mm
Min./Max. spindle-to-table distance: 150~660 mm
Max. table load: 600 kgf
Table surface configuration: 4-125 × 15H8
Max. workpiece height: 465 mm
Control: FANUC
