ABUS ZLK 25 t / 25 t x 20000mm 50T

Cranes

Order-No.SB5000
MakeABUS
Built in2012
OriginGermany
Conditionused
Delivery TermsAccording to the arrangement
QuotationFree on truck from location
Priceupon request
Send inquiry »
weight max.
50 t
stroke
5880 mm
clamping width
20000 mm
total weigt
18240 kg
total power requirement
43 kW

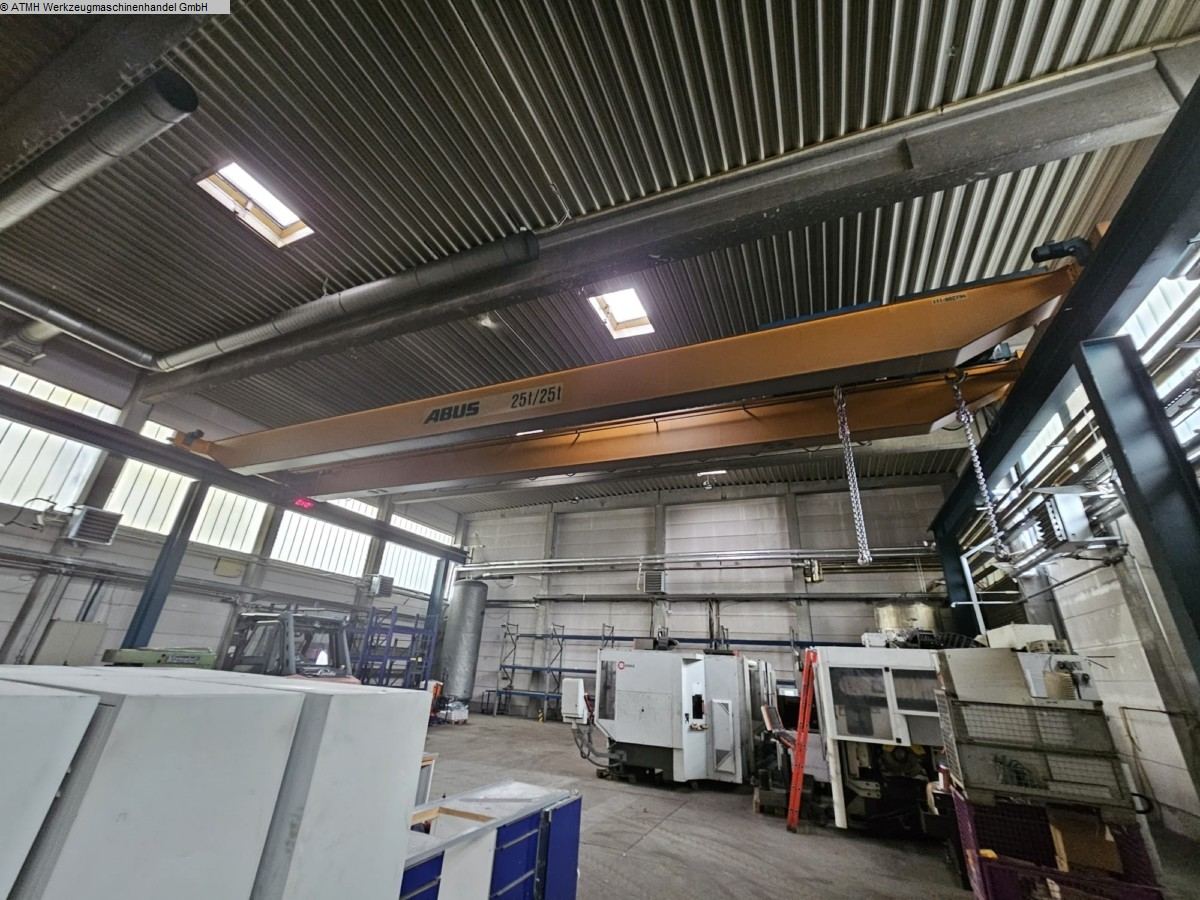

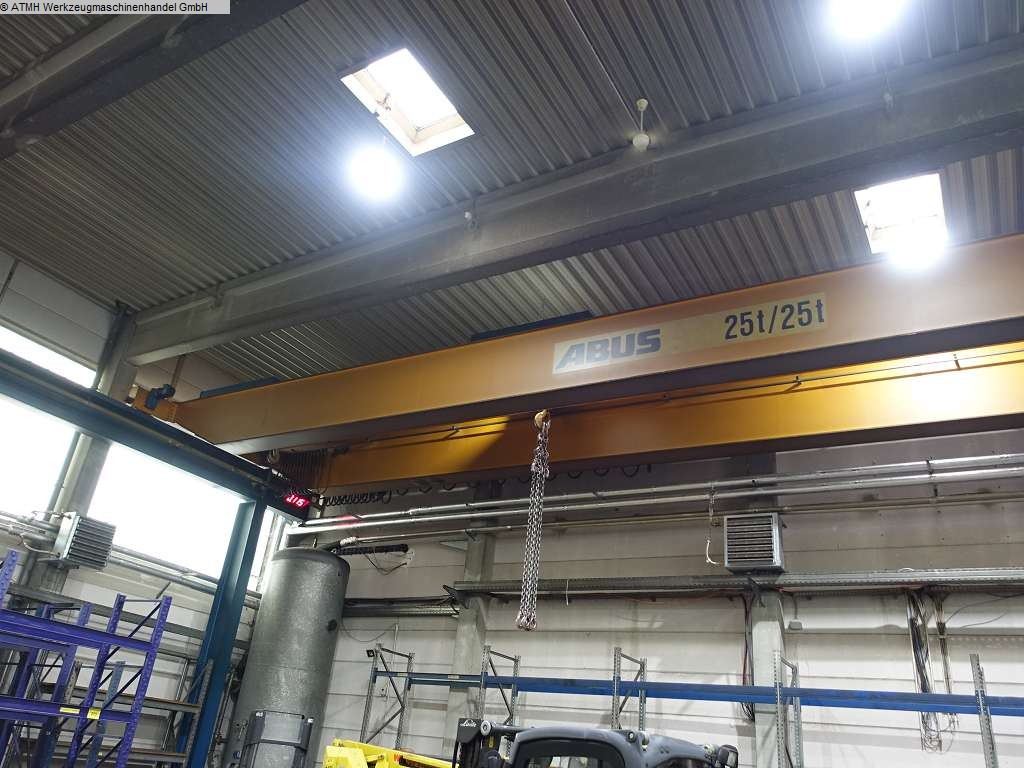

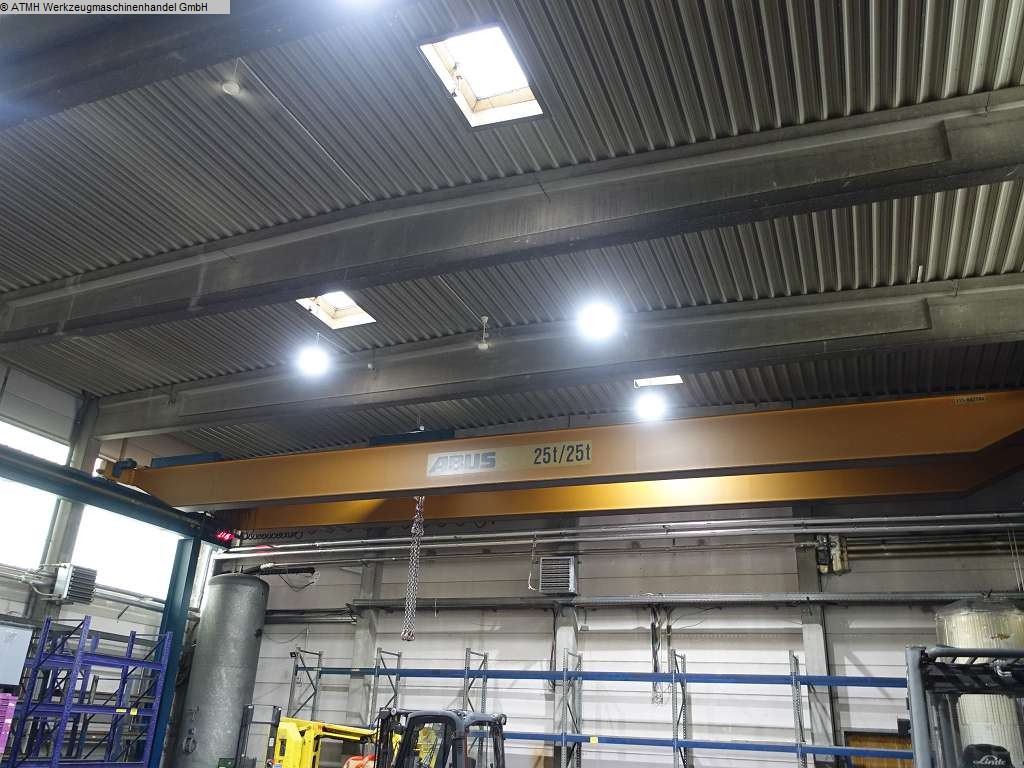

CRANE: ABUS ZLK 25 t / 25 t x 20,000 mm

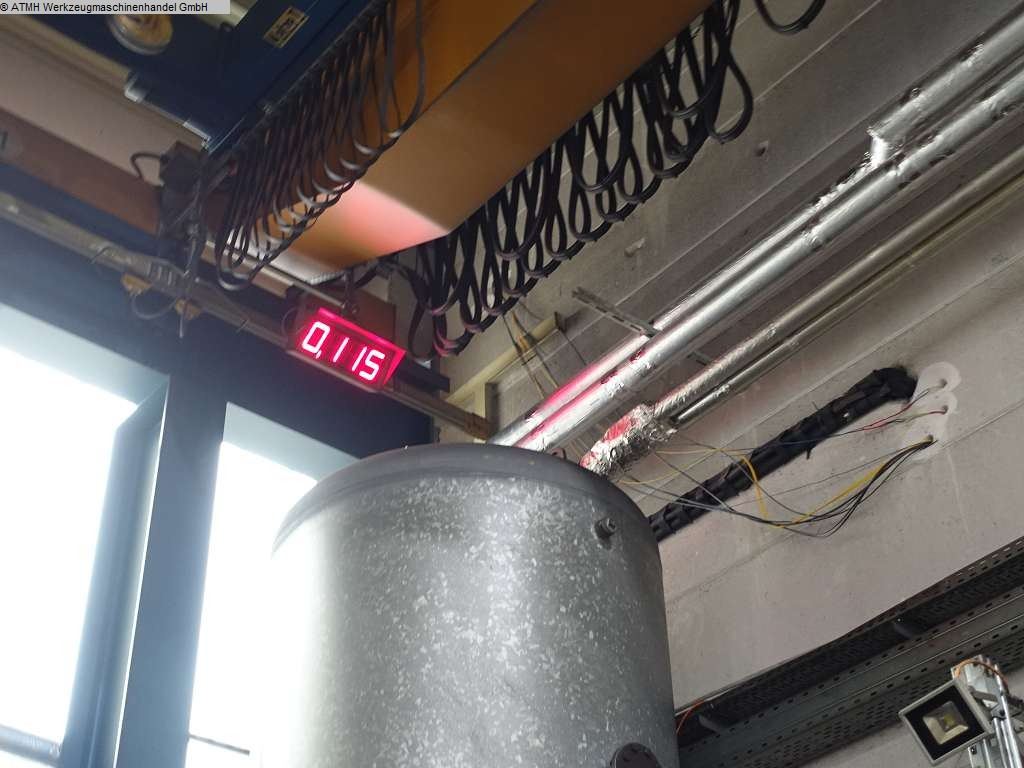

including digital crane scale
Design basis: DIN 15018, H2/B3

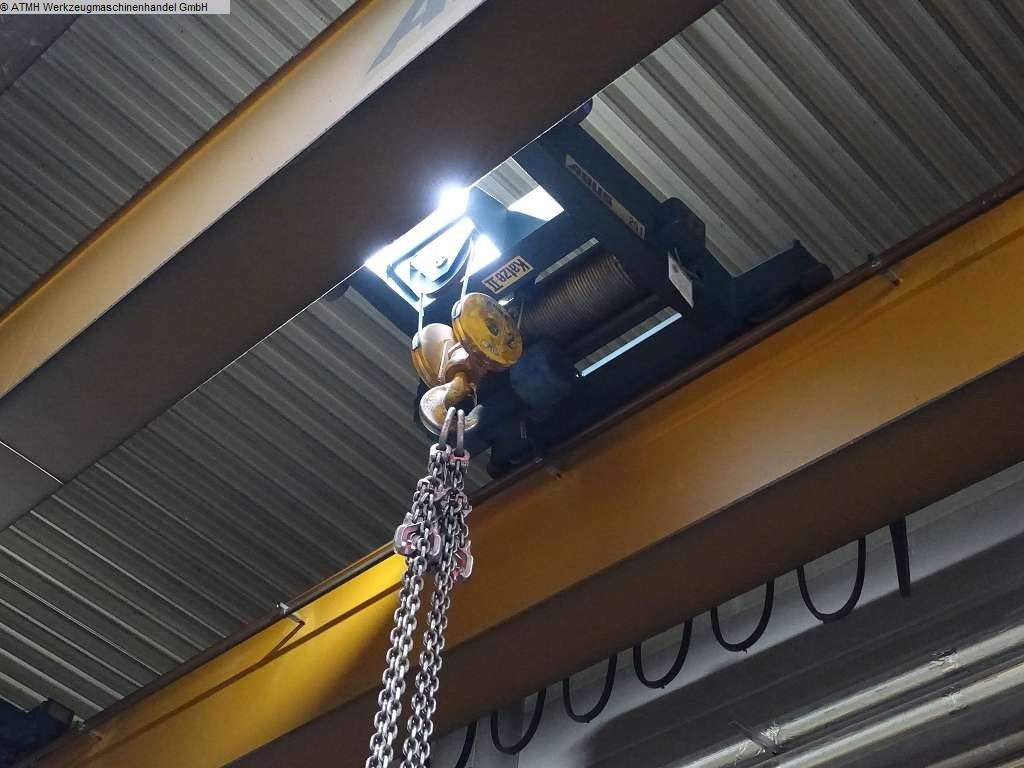

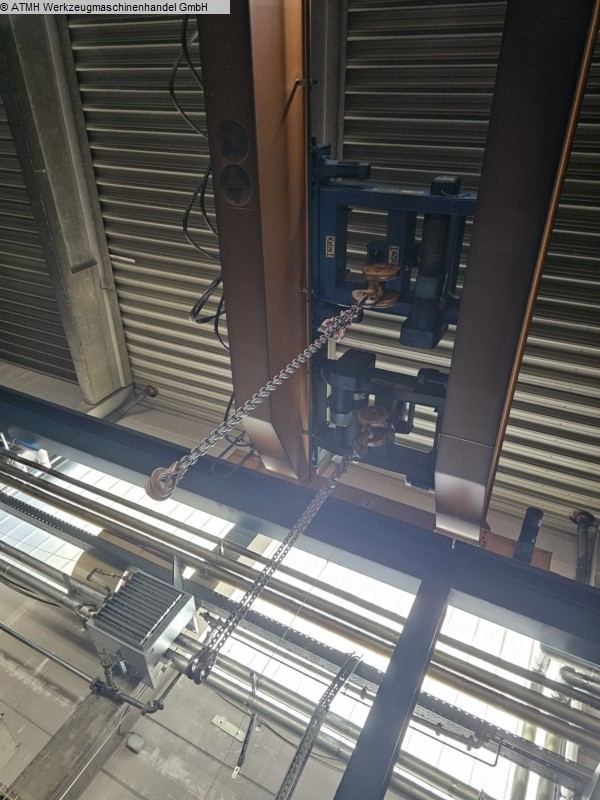

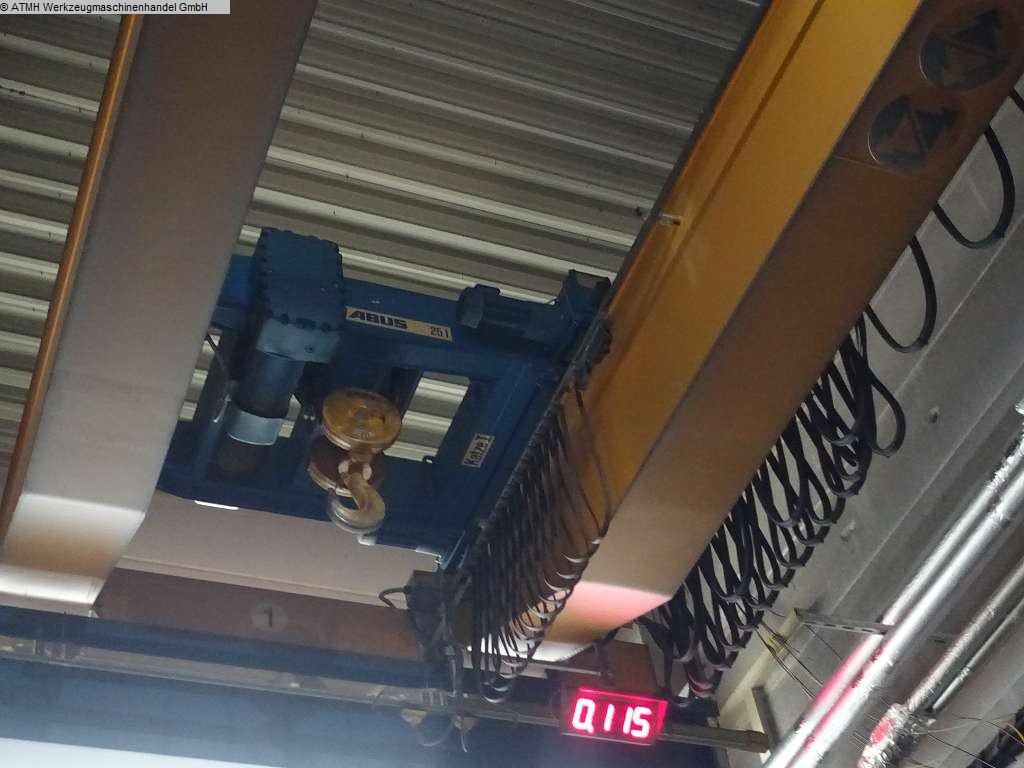

Trolley 1: GM 6000.25000 L-161.41.10000.3.DQA 280.20
Trolley 2: GM 6000.25000 L-161.41.10000.3.DQA 280.20
Drive unit: 1: 1Am /M4 - 2: 1Am /M4
Crane travel: 5 / 20 m/min
Lifting: 1: 0.7 / 4 m/min - 2: 0.7 / 4 m/min
Total weight: 18,240 kg (of which trolley 1 / 2: 2,041 kg / 2,041 kg)
Total connected load: 43 kW (starting current* cos phi: 328 A)
Maximum hook travel of trolley 1: 10 m, 2: 10 m, actual usage depending on the installation situation
