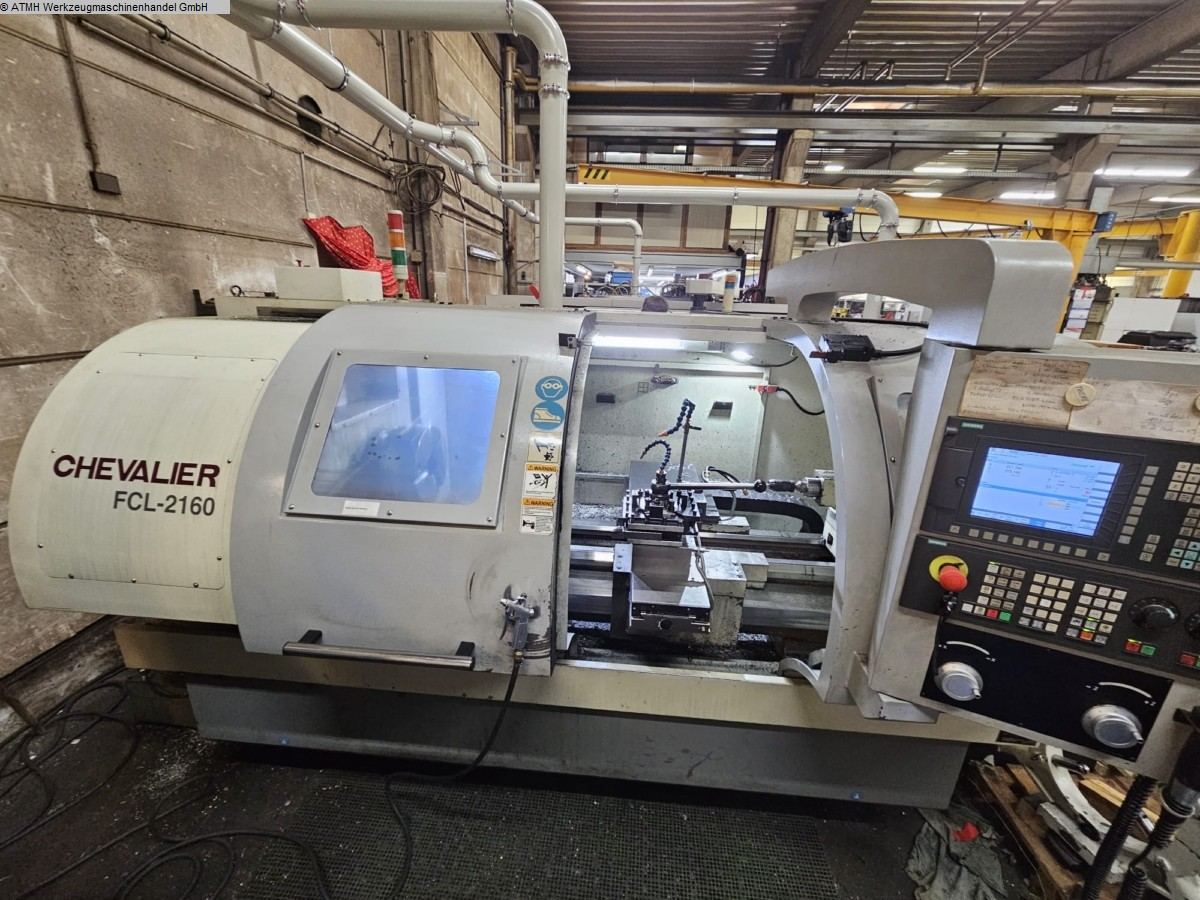

CHEVALIER FCL-2160
CNC Lathe
| Order-No. | SB306 |
| Make | CHEVALIER |
| Built in | 2011 |

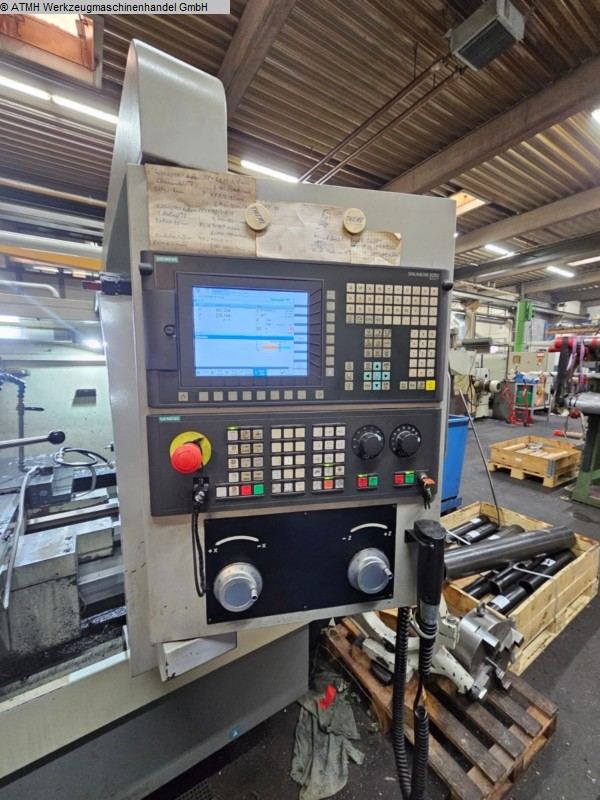

| Control Name | SINUMERIK 828D |
| Origin | taiwan |
| Condition | used |
| Location | Ennepetal |
| Delivery Terms | According to the arrangement |
| Quotation | Free on truck from location |
| Price | upon request |
| turning length |
|---|
| 1500 mm |
| control |
|---|
| SINUMERIK 828D |
| centre height |
|---|
| 270 mm |
| greates pass round over bed |
|---|
| 540 mm |
| swing diameter over slide rest |
|---|
| 310 mm |
| bed width |
|---|
| 350 mm |
| max. workpiece weight |
|---|
| 1500 kg |
| spindle bore |
|---|
| 85 mm |
| turning speeds |
|---|
| 27 - 2250 U/min |
| main drive DC |
|---|
| 11 kW |
MACHINE EQUIPMENT:

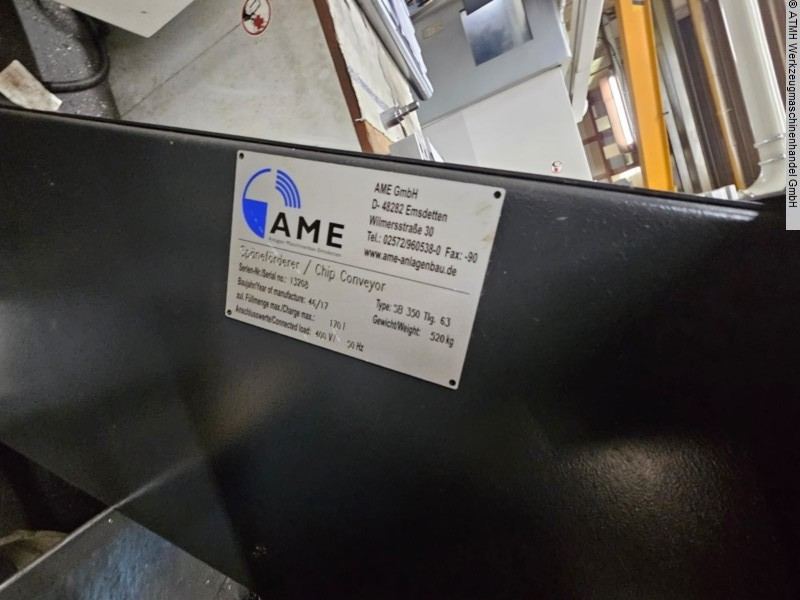

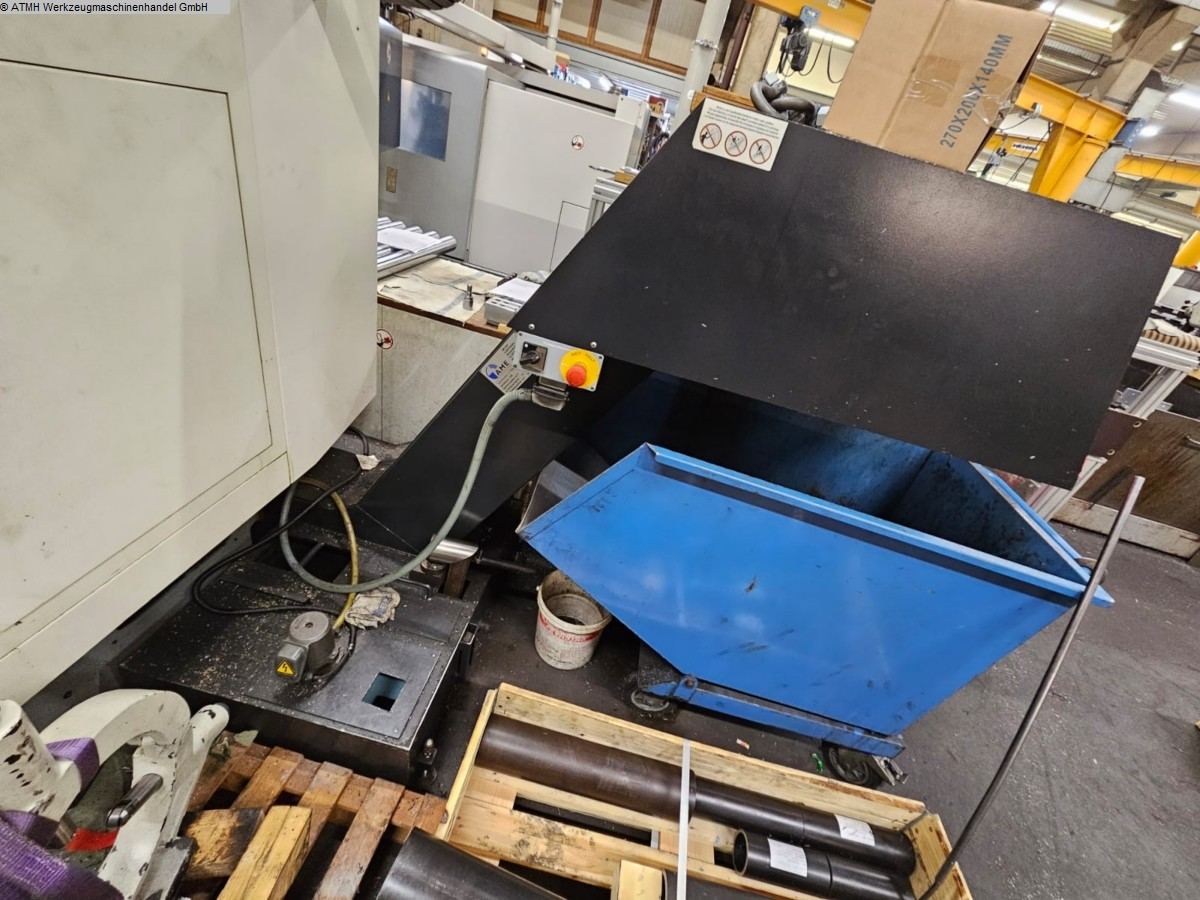

- AME chip conveyor

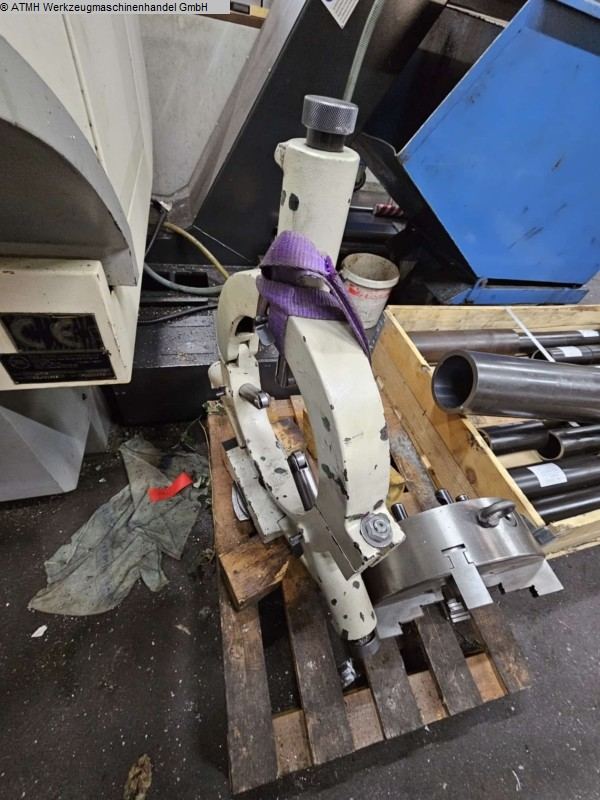

- Lynette
- Heavy grey cast iron bed for optimum damping and reduced tool wear
- Inductively hardened and parallel synchronised bed guides
- Counter guides completely Turcite-coated and hand-scraped
- Hardened and ground ball screws
- Thermosymmetrical headstock
- Main drive 11 kW
- Infinitely variable speed range 27-2250 rpm with 3-stage gearbox
