MAHR Dig. Mic. Set 0100 mm, IP65
Measurement equipment and tools
- BRAND NEW -
Order-No. | SB216 |
Make | MAHR |
Origin | Germany |
Condition | new |
Location | Ennepetal - Hall 3 |
Delivery Terms | immediately |
Quotation | Package shipping |
Price | upon request |

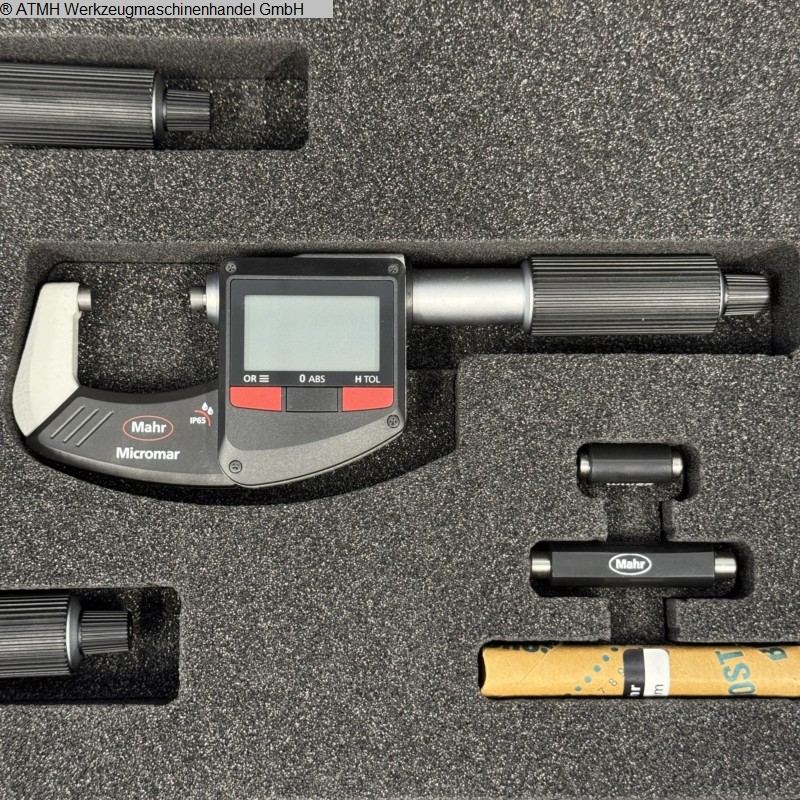

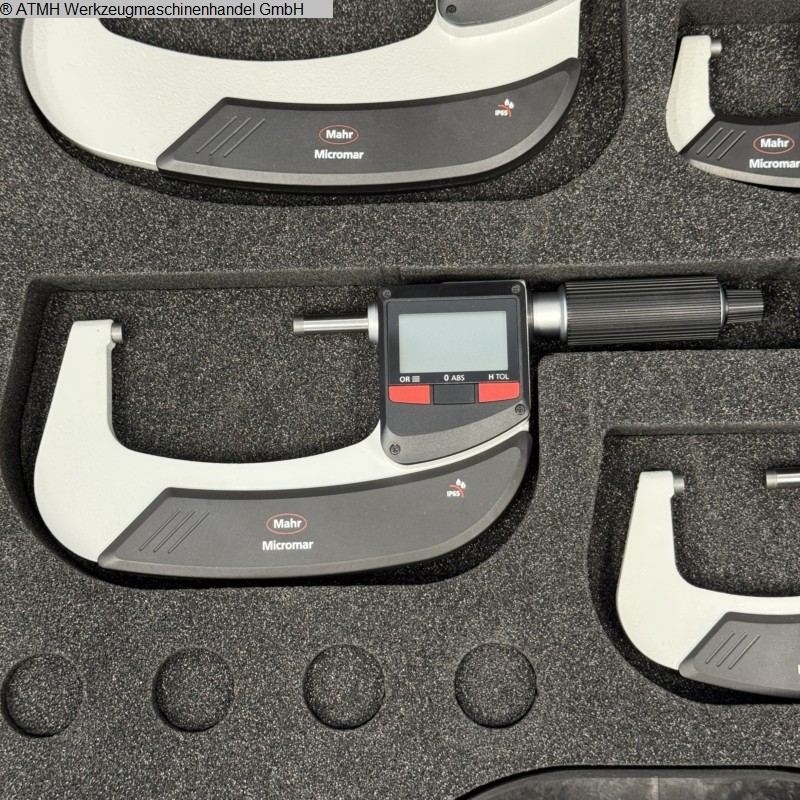

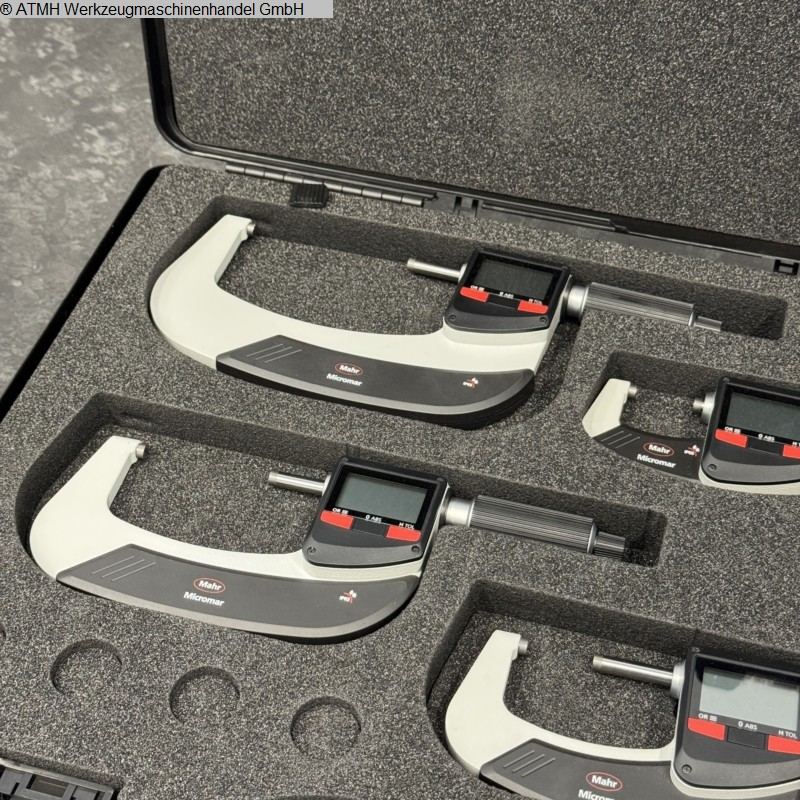

MAHR Digital Micrometer Set 0–100 mm, IP65
Digital micrometer set, IP65, with data output.

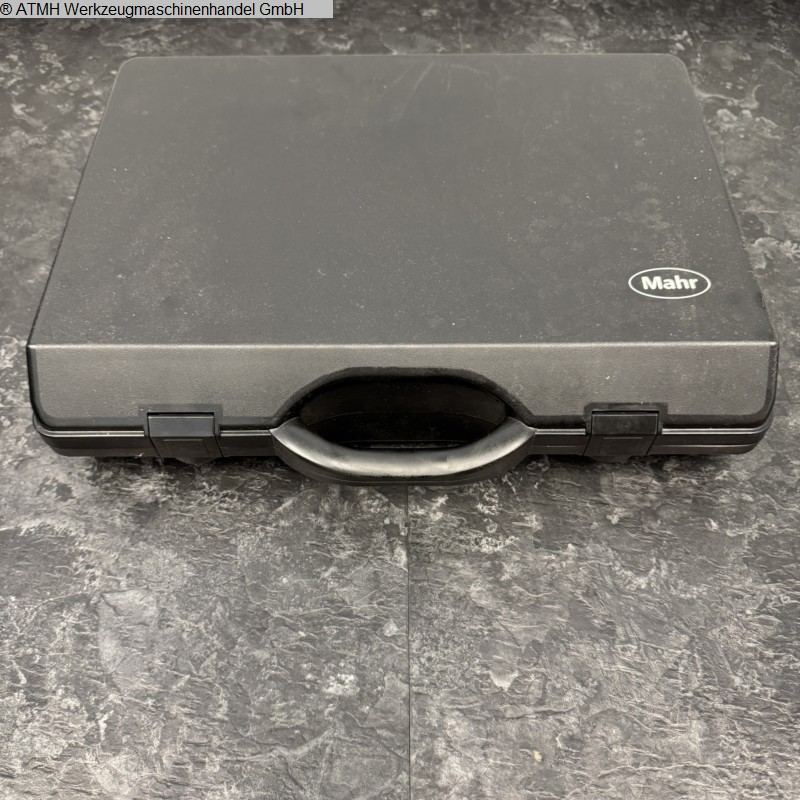

Design: Hardened and ground stainless-steel measuring spindle, painted steel frame, ratchet, rapid drive and heat-insulated hand protection. LCD display with 8.5 mm digit height, protection class IP65, with data output (RS232, Digimatic, and USB). Supplied with CR2032 3 V battery, in case.
Functions:
- On/Off and automatic shut-off
- mm/inch conversion
- Automatic power-on by rotating the thimble
- Key lock for fixed zero position
- No need to reset after switching on (absolute system)
- ABS (switch between relative and absolute measurement)
- Reset (zero setting) possible at any position
- Preset function (pre-setting of measurement values)

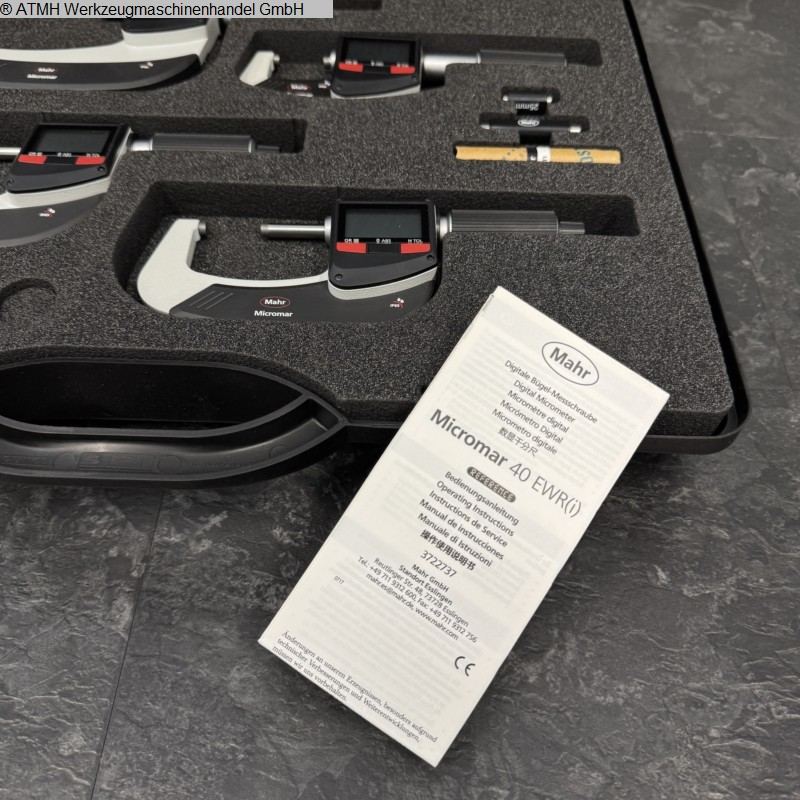

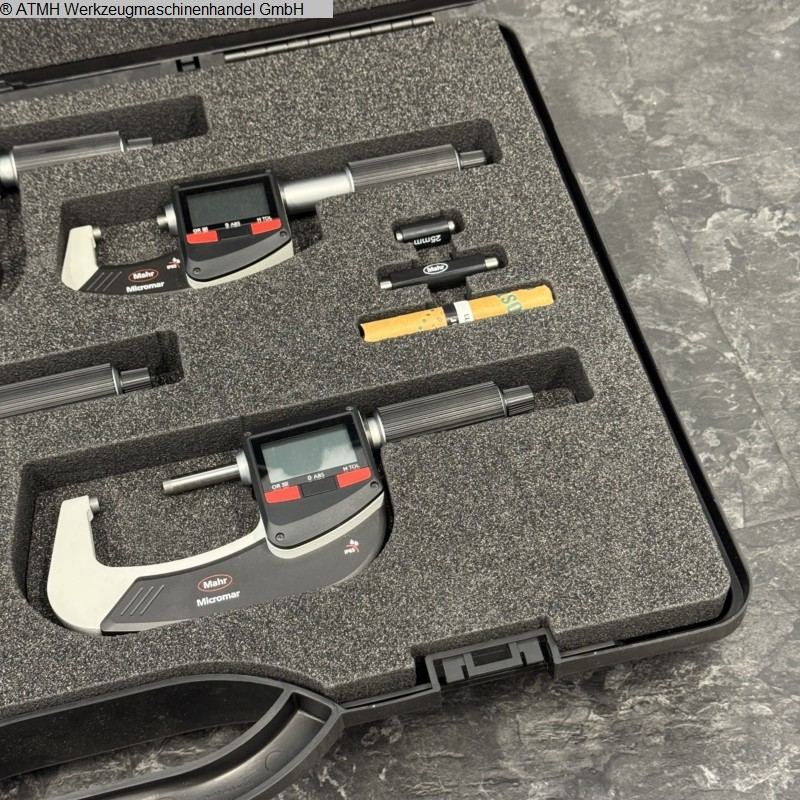

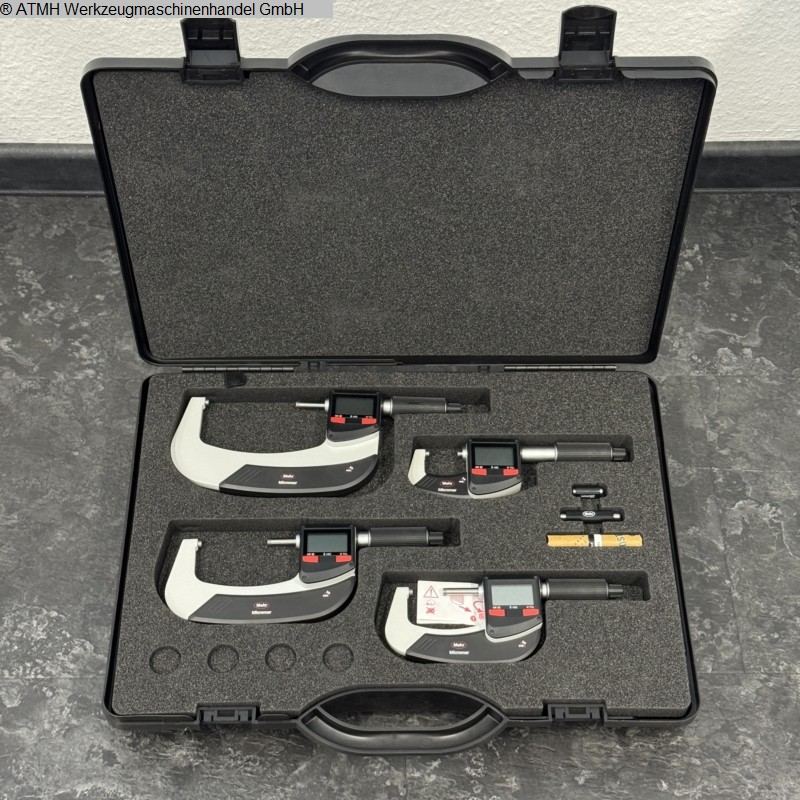

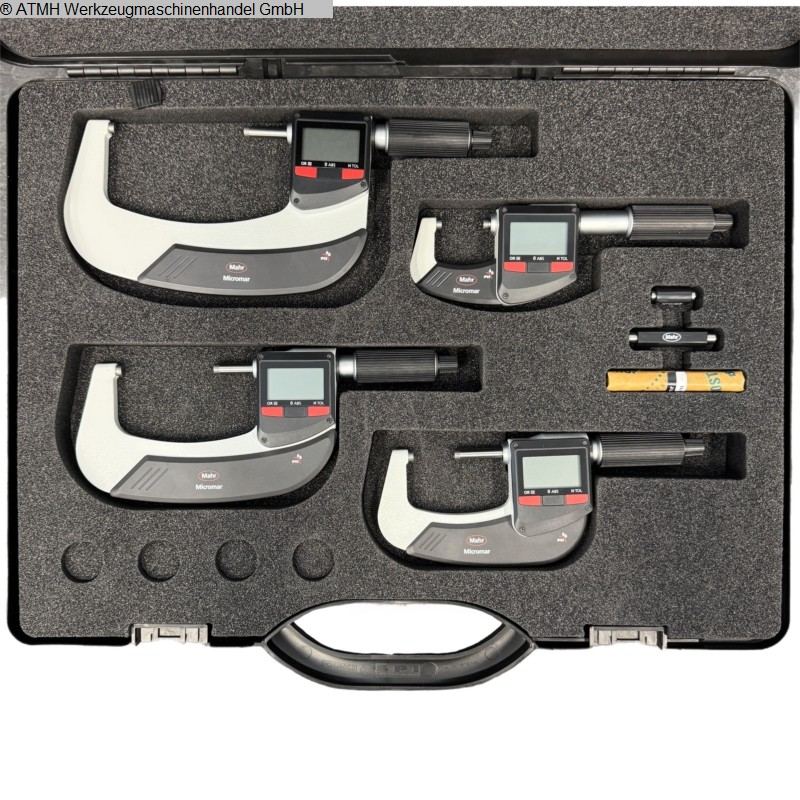

Set contents:
1 micrometer, 0–25 mm
1 micrometer, 25–50 mm
1 micrometer, 50–75 mm
1 micrometer, 75–100 mm
3 setting standards, 25, 50, and 75 mm
1 adjusting wrench
