Plattenfeld 7000 x 5250 x 330 mm
bolster plate
| Order-No. | S58001 |
| Make | Plattenfeld |
| Origin | Deutschland |
| Condition | used |
| Location | Ennepetal - Halle 3 |
| Delivery Terms | immediately |
| Quotation | From stock - free on truck |
| Price | upon request |
| plate width |
|---|
| 7000 mm |
| plate depth |
|---|
| 5250 mm |
| plate height |
|---|
| 330 mm |
| weight |
|---|
| ca. 4400 kg |

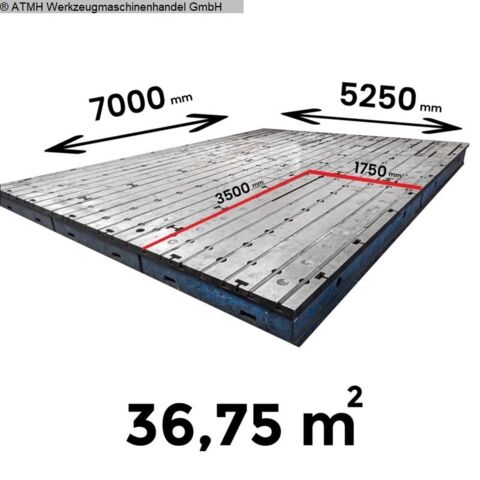

Dimensions:
Length: 7000 mm
Width: 5250 mm
Height: 330 mm
The panel field comprises six clamping plates with the following dimensions:
1750 mm x 3500 mm
The plates are also available individually.
Total Area: 36.75 m²
T-Slot Specifications:
Number of T-slots: 21
T-slot Spacing: 250mm
T-slot Dimensions: 58 mm x 34 mm
T-slot Depth: 60 mm
