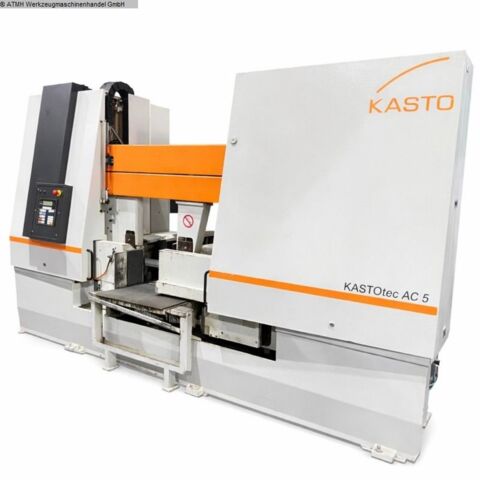

KASTO tec AC5 automatic band saw
Sawing capacity: 23kW
Machine weight: 5.9t
Year of manufacture: 2002
Cutting ranges in mm approx.:
Round: 530mm
Square: 530x530mm
Flat: 530x630mm
Smallest dimension to be sawn: 10x10 mm
Minimum length to be sawn: 6 mm
Minimum residual length, single cut: 10 mm
Minimum residual length, automatic mode: 35 mm
Automatic material feed, single, max. (standard): 600 mm
Automatic material feed single max. (optional): 1500/3000 mm
Multiple material feed: 9999 mm
Machine roller conveyor length: 1568 mm
Max. piece weight: 2275 kg
Cutting speed: 12-120 m/min (infinitely variable)
Cutting feed: continuously adjustable
Material feed: with ball screw
Automatic feed: with horizontal clamping device
Material clamping: hydraulic, continuously adjustable
Clamping force
Machine clamping device: 200-1000 daN
Feed clamping device: 200-2000 daN
Saw blade clamping: hydraulic, factory-set
Saw blade cleaning: by easily replaceable double brush, driven by a hydraulic motor.
Coolant tank volume: approx. 185 l
Pump capacity: approx. 25 litres/min
